Drilled post

Beginner Example 1 parts, 1 pieces

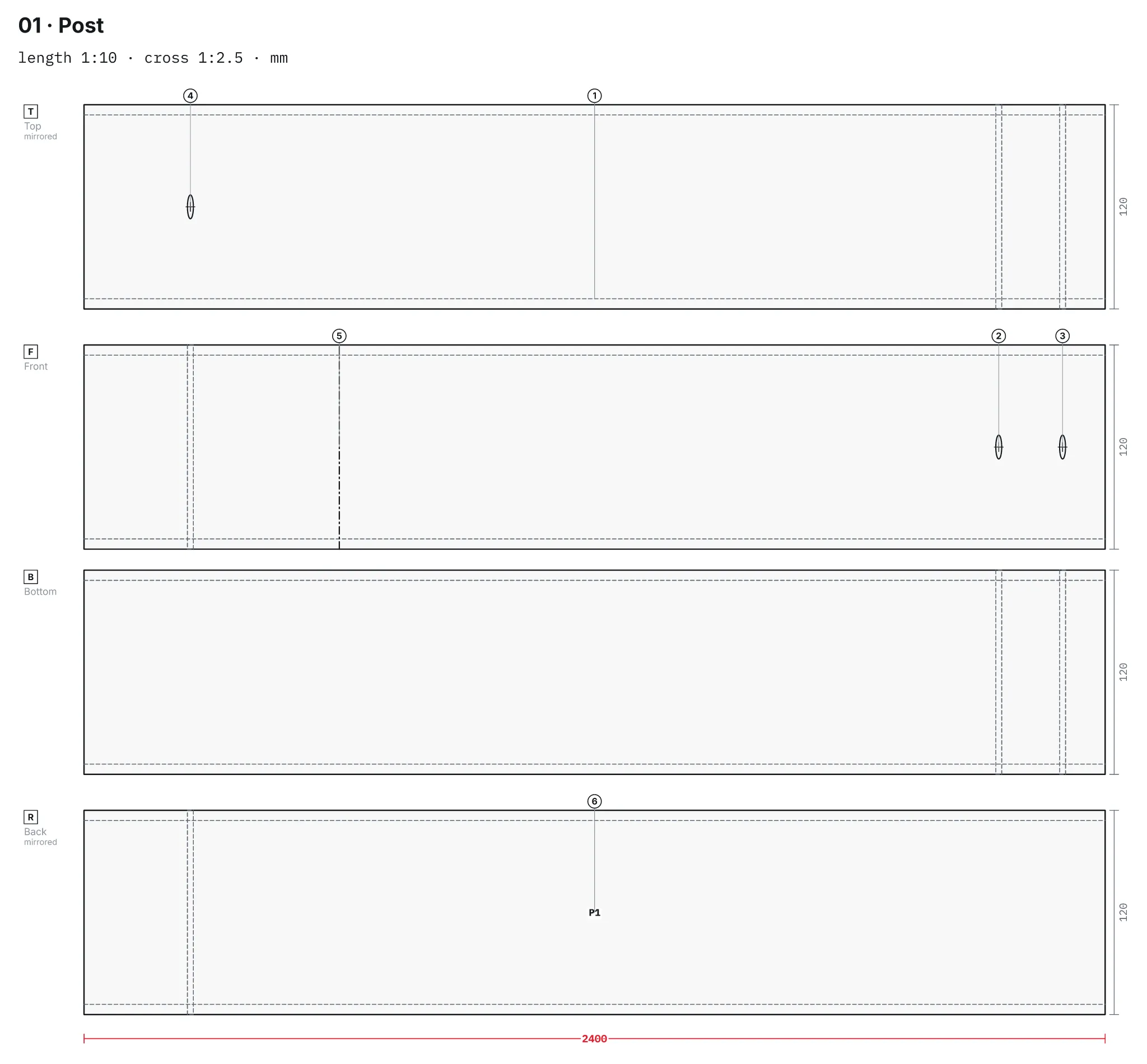

A single 120 x 120 mm post, 2400 mm long, with bolt holes, chamfered edges, a ground-level marking and a part number.

Open in editor

Opens as a new project on this device. Open it again and you get a second copy; your first one is never overwritten.

What you learn

• Add a standalone part with a length and profile
• Drill through holes on the front and top faces
• Chamfer all four edges along the full length
• Scribe a marking line and write the part number on a face

Parts

No.	Name	Profile (mm)	Length (mm)	Qty	Processings
01	Post	120 x 120	2400	1	6

Processings used

• Chamfer
• Drilling
• Marking
• Text
