Import a machine file

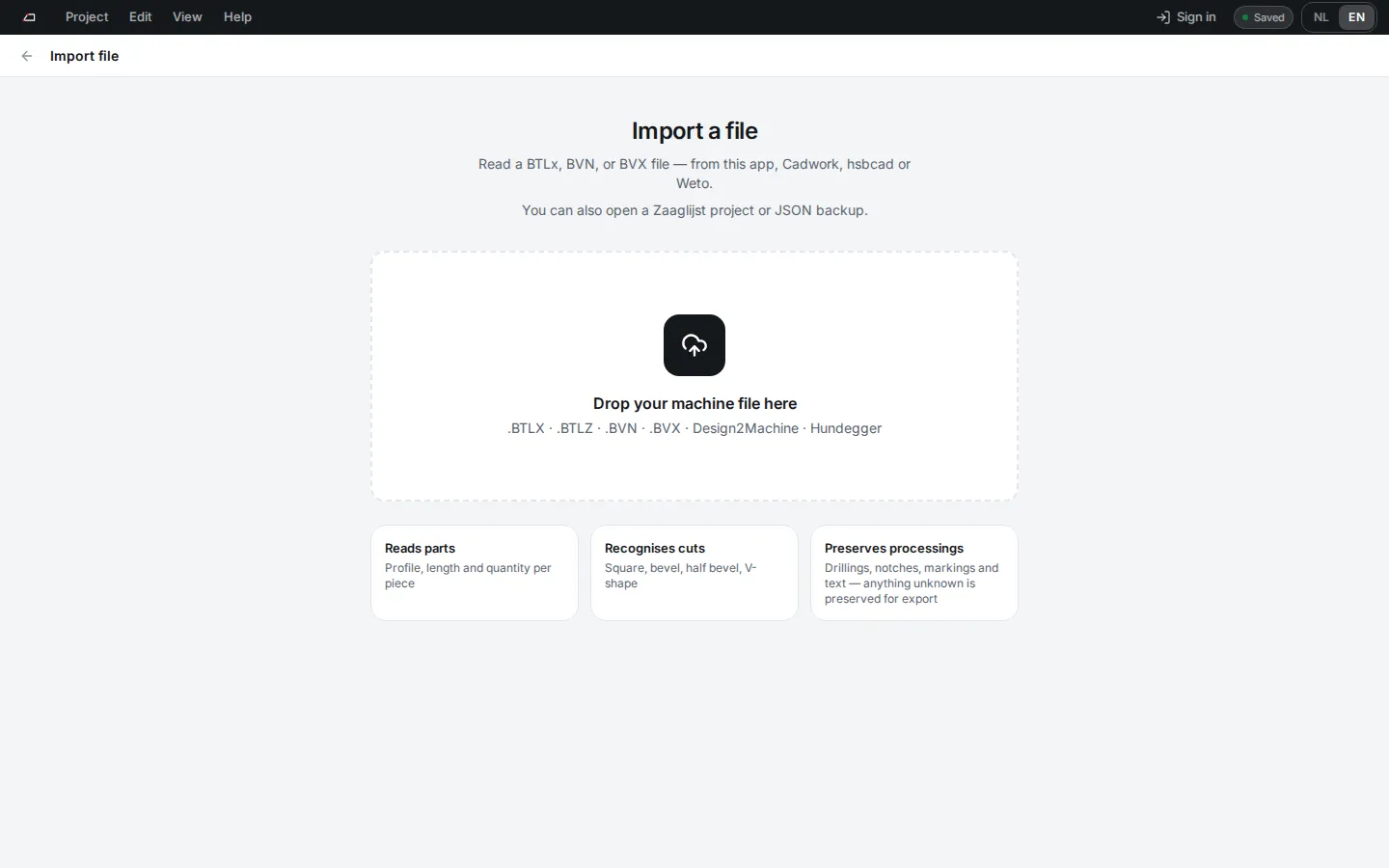

The Import a file page with a drop zone and the feature cards

Import file reads a machine file from this app, Cadwork, hsbcad or Weto and turns it into a project.

Import a file

Section titled “Import a file”
  1. On Projects, click Import file.
  2. Drop the file on the page, or click Choose file.
  3. Check the list under Parts read: parts, pieces, profiles and issues.
  4. Edit the project name, client and location if needed.
  5. Click Create project.

What it reads

Section titled “What it reads”
File Notes
BTLx (.btlx, .btlz) BTLx 1.0 up to 2.3.1. A .btlz file can be up to 8 MB.
BVN (.bvn) Hundegger fixed-column files.
BVX (.bvx) BVX1 and BVX2.
Project or backup (.json) Opens as a new local project with Open project copy. Your other projects stay as they are.

The app looks at the file contents, so a renamed file still imports. Machine files can be up to 32 MB, JSON files up to 8 MB.

To add parts to a project you already have, use Import into project on the Export page.

  • Export files: Export a PDF cutting list, CSV, technical drawings, a project backup and BTLx, BVN or BVX machine files. See what blocks an export.
  • Projects dashboard: The Projects dashboard lists every cutting list on this device. Create, open, duplicate and delete projects, or start an import or scan.
  • Parts editor: Edit parts in the Parts view: profile, length, end shapes and extra processings, with 2D and 3D drawings and a live validity check.
  • Import a 3D model: Keep a GLB or glTF model in the library and use it as a reference model to draw over in the fitting workspace.
  • Fitting workspace: Build a 3D assembly of members in Fitting. Every member becomes a part, and the joints where members meet are worked out for you.
  • Scan a mockup: Photograph a physical mockup from every side and get back a 3D model to use as a reference. Scanning is in beta and needs a network.
